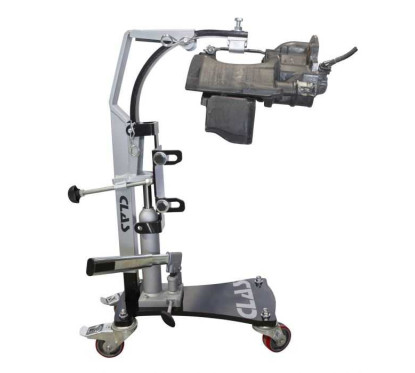

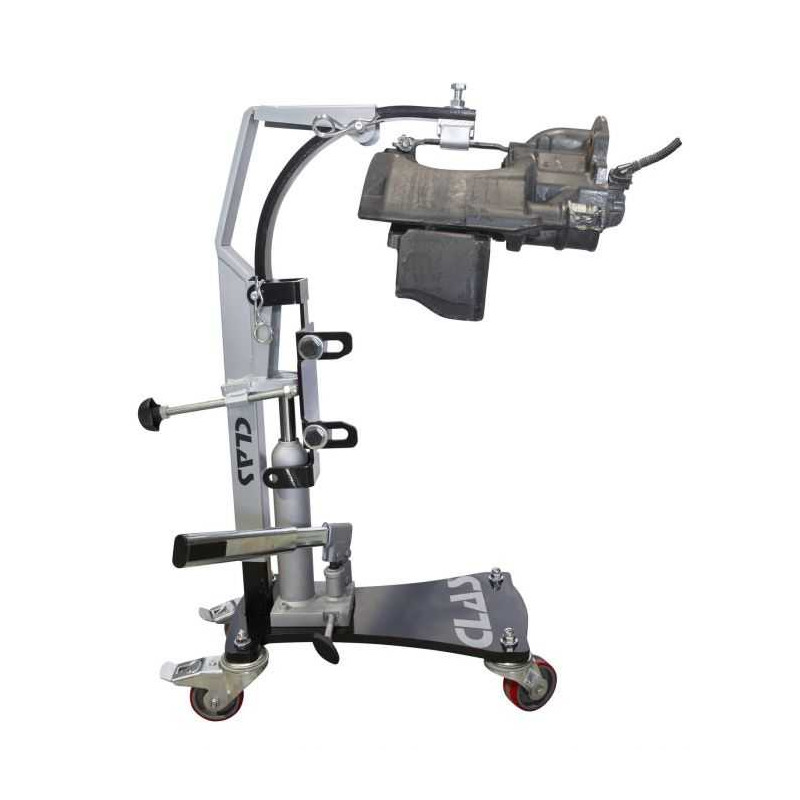

The PL Clas brake caliper bracket is designed to keep the brake calipers in the optimal position during maintenance operations, such as replacing discs or other interventions on truck brake systems. Robust, mobile and versatile, this tool is a must-have for professional workshops.

Technical Specifications:

• Adjustable positions:
  • 1' (12 p.m.): Central position.
  • 2' (10h/2h): Intermediate position.
  • 3' (9h/3h): Lateral position.
  • 4' (Mercedes specific): With integrated offset gauge.
• Stroke : 200 mm, for optimal adaptability to different configurations.
• Mobility: 4 swivel wheels, 2 of which are braked, for increased stability and maneuverability.
• Dimensions : 470 x 250 x 700 mm, compact and easy to store.
• Weight : 35 kg, guaranteeing great stability.
• Maximum capacity : Supports up to 40 kg.

Benefits:

1. Precision and safety:
   • Holds the caliper in the initial position, reducing the chance of misalignment.
2. Increased mobility:
   • The swivel wheels allow easy movement around the vehicle.
3. Versatility:
   • Compatible with various configurations thanks to its adjustable positions, including specific models like Mercedes.
4. Robustness:
   • Designed to withstand high loads and the conditions of a professional workshop.

Recommended Methodology for Disk Replacement:

1. Using the caliper bracket (OH 8001):
   • To maintain the initial position of the caliper during the operation.
2. Using the hub/caliper bracket (OH 8010):
   • To extract the hub and caliper assembly.
3. Using the cylinder disc puller (OH 8012):
   • Optional, in case of stubborn discs requiring additional force.

Applications:

• Maintenance and replacement of brake calipers and discs on heavy vehicles.
• Specific for Mercedes thanks to the addition of the offset pin.
• Ideal for professional workshops specialising in heavy goods vehicles.
