Technical Specifications

• Lifting Capacity:

  • Total: 30 tons
  • Per column: 7,500 kg
  • Maximum Lifting Height: 1700 mm
  • Lifting Time at Maximum Load: 90 s
  • Wheel Diameter: Min. 380 mm / Max. 1156 mm

• Power supply and motorization:

  • Batteries: Dual 12V slow discharge batteries with 120V charging system
  • Engine: 24V DC / 2.2 kW electro-hydraulic

• Weight and Dimensions:

  • Weight per Column: 730 kg
  • Column Dimensions: 2300 x 1100 x 1374 mm

Benefits & Features

1. Autonomy and Exceptional Performance:

   • Thanks to the slow-discharge batteries, these columns can be used outdoors without the need for an additional power source, offering up to 20 cycles of up/down on a full charge.

2. Wireless Sync:

   • The wireless system allows perfect synchronization of the columns, even when the load is unevenly distributed. The columns automatically synchronize for precise and safe lifting.

3. High Lifting Capacity:

   • Total lifting capacity: 30 tons, ideal for heavy trucks, trailers and industrial vehicles.

4. Maximum Security:

   • Integrated hydraulic and mechanical safety systems, meeting European safety standards.
   • Alert lights and audible alarms for real-time control.
   • Key lock and emergency stop button to ensure user safety.

5. Robust and Mobile Design:

   • The integrated pallet truck makes it easy to move the columns around the workshop or outdoors.
   • One-piece frame and heavy-duty guide bearings to ensure maximum durability and stability.

6. Adaptability:

   • Adjustable forks for a wide range of wheel sizes, eliminating the need for special wheel adapters.

7. Electronic Control:

   • State-of-the-art electronics with dual PLC synchronization for optimal control.
   • LCD control screen showing lifting height and enabling automatic calibration and diagnostic functions.

Applications

• Truck workshops: Ideal for garages specialising in the repair of heavy goods vehicles, trucks, trailers and other industrial vehicles.
• Agricultural and Industrial Vehicles: Perfect for off-road, agricultural and industrial vehicles, requiring high-capacity lifting solutions.
• Outdoor Use: Thanks to the autonomy of the batteries, these columns are ideal for interventions outside the workshop.

Security Systems

• Dual PLC Sync: Ensures perfect synchronization of the lift and guarantees the safety of the operation.
• Audible warning lights and alarms for constant monitoring during lifting.
• Key lock and emergency stop to ensure maximum security during use.

Dimensions and Weight

• Column Dimensions: 2300 x 1100 x 1374 mm
• Weight per Column: 730 kg

Conclusion

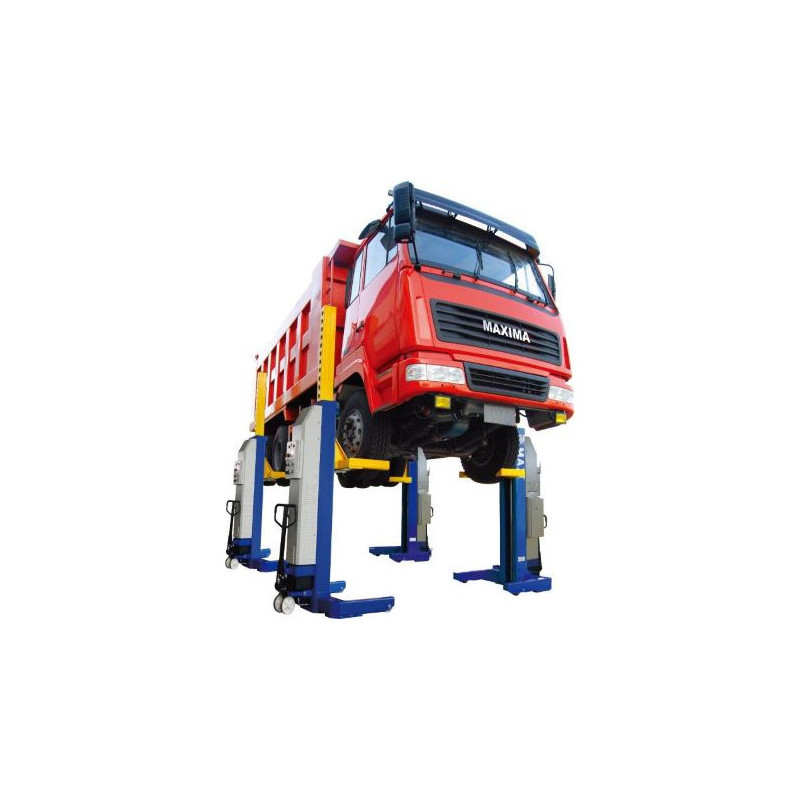

The ML75W Wireless Truck Column Lifts x4 are a reliable, high-performance and safe solution for mechanical professionals working on heavy trucks, trailers or industrial vehicles. With a lifting capacity of up to 30 tons, cordless autonomy, and advanced safety systems, they represent a valuable investment to ensure efficient and safe lifting operations.

Order the ML75W Column Lifts today to maximize the productivity and safety of your lifting operations!
