Technical Specifications

• Thermal power:
  • Min: 81 kW (70,000 kcal/h)
  • Max: 220 kW (189,000 kcal/h)
• Fuel: Natural Gas (Family 2)
• Lower Heating Value (CFI): 8 - 12 kWh/m³ (7,000 - 10,340 kcal/m³)
• Gas Pressure:
  • Min: 26 mbar
  • Max: 360 mbar
• Operation: Intermittent (FS1)
• Employment: Water and Diathermic Oil Boilers
• Ambient temperature: 0 - 50 °C
• Combustion Air Temperature: 60 °C max
• Power supply: 1/230V/50Hz
• Fan Motor:
  • Speed: 2750 - 2880 rpm
  • Power: 150 W
  • Current: 1.3A
• Ignition transformer:
  • Primary: 230V / 1.8A
  • Secondary: 8 kV / 30 mA
• Capacitor: 5mF
• Electrical power consumption: 0.25 kW
• Protection Factor: IP40
• Weight: 16 kg
• Sound pressure: 66.8 dB(a)
• Sound power: 78.5 dB(a)

Benefits

1. Adjustable heat output:

   • Wide range of thermal output from 81 kW to 220 kW, making it possible to meet various heating needs.

2. Combustion Efficiency:

   • Intermittent operation for optimal temperature control in water and oil boilers.

3. Installation Convenience:

   • Powered by a standard 1/230V/50Hz power source, easy to install in industrial environments.

4. Reliable ignition system:

   • High-performance ignition transformer ensures reliable starting every time.

5. Compliance and Security:

   • IP40 protection rating, guaranteeing adequate resistance to dust and humidity in work environments.

Applications

• Industrial Paint Booths: Ideal for maintaining a constant and stable temperature in painting environments to optimize drying processes.
• Diathermic Water and Oil Boilers: Used to provide the heat needed for industrial water and oil boilers.
• Factories and Manufacturing Workshops: Perfect for applications requiring precise and reliable heating in an industrial environment.

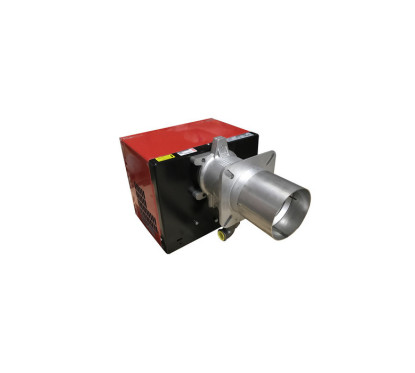

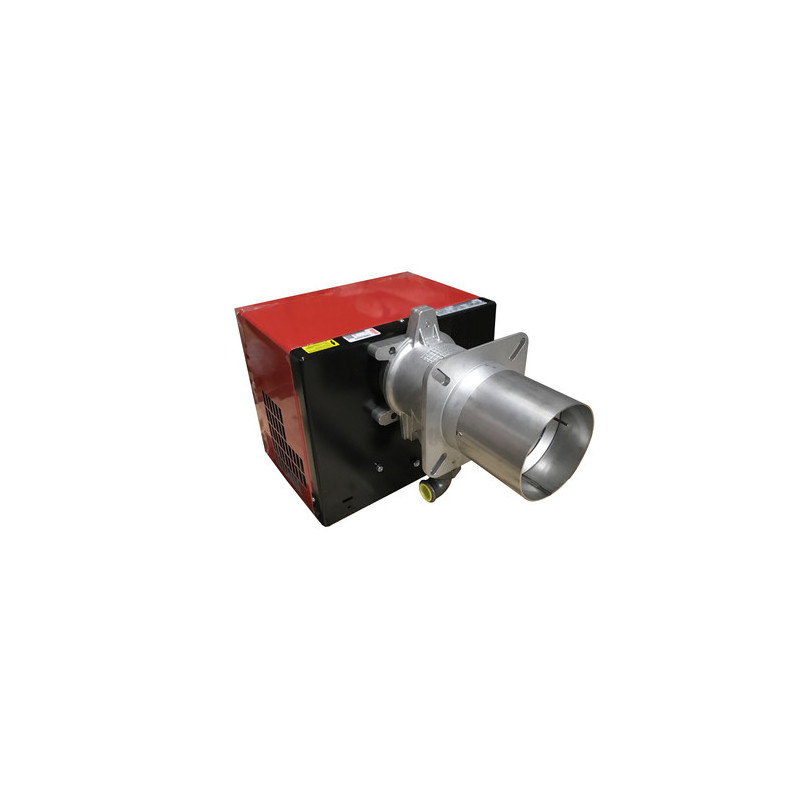

Why Choose the EE-7505CE Gas Burner?

• Versatility and Power: Offers a wide range of thermal power to suit different industrial needs.
• Efficiency and Reliability: Optimized combustion system for consistent, reliable performance.
• Designed for Demanding Environments: Ideal for paint booths and other applications requiring precise temperature control.

Order the EE-7505CE Type 569T30 Gas Burner on ZoneAutoPro.com today for reliable, high-performance equipment for your industrial applications!

For any questions or assistance, our team remains available to assist you in your choice.
