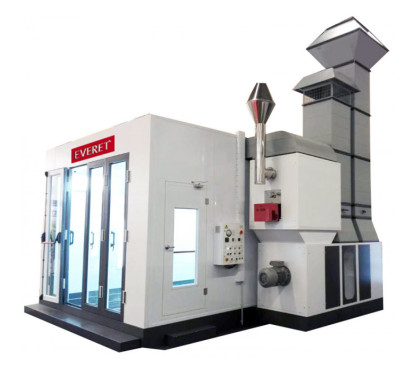

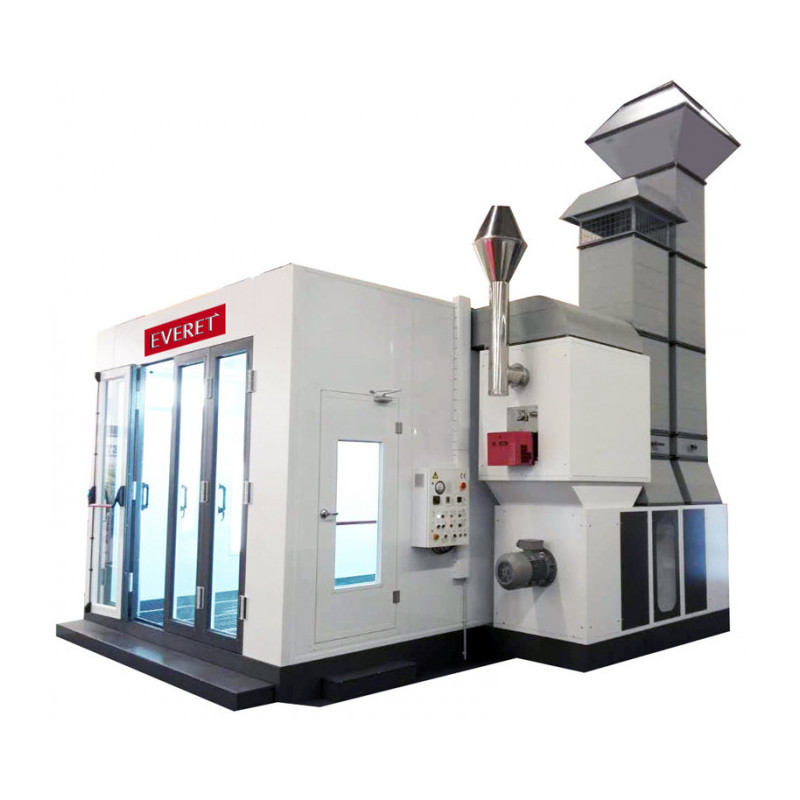

Technical Specifications

• Exterior Dimensions (ramps not included):
  • Length: 7006 mm
  • Width: 5556 mm
  • Height: 3400 mm
• Interior dimensions:
  • Length: 6900 mm
  • Width: 4000 mm
  • Height: 2650 mm
• Dimensions of the Great Door:
  • Width: 3000 mm
  • Height: 2600 mm
• Blower and Air Extraction Capacity: 25,000 m³/h
• Indoor Air Velocity: ≥ 0.25 m/s
• Air exchange volume: 280 m³/h
• Maximum temperature: 80 °C
• Noise level: ≤ 80 dB
• TSP (total suspended particulate matter): ≤ 1.4 mg/m³
• Fuel consumption: 6 - 8 Kg/vehicle
• Power: 16 kW

Functions of the Paint Booth

• Automatic Spraying:

  • Facilitates uniform paint application with an automated spray system.

• Paint Drying:

  • The built-in drying system allows the paint to cure quickly to speed up the repair process.

• Ventilation:

  • The powerful ventilation system ensures efficient airflow to maintain a clean environment while painting is applied.

• Air Purification:

  • High-performance filters purify the air by removing paint particles and other contaminants.

• Treatment of Paint Residues:

  • The paint mist treatment system helps capture and remove residue, improving air quality.

Equipment Included

• Cabin Structure: Robust and reliable construction for everyday use.
• Lighting system: Ensures optimal visibility during the painting process.
• Air Supply Device: Provides fresh, clean air to the cabin.
• Ventilation and Air Purification System: Maintains a clean and safe work environment.
• Paint Mist Treatment System: Captures paint particles for clean, healthy air.
• Pressure Control Device: Ensures optimal and stable airflow throughout the spraying process.
• Electrical System Control: Electrical management system to control all aspects of the cab.

Benefits

1. Clean and Safe Work Environment:

   • The filtration and air purification system ensures a working environment without health risks, while improving the quality of the paint finish.

2. Maximum Efficiency:

   • The combination of automatic spraying, fast drying, and high air exchange saves time while ensuring a high-quality finish.

3. Suitable for Professional Use:

   • Designed for automotive paint shops, it offers an all-in-one solution for painting and drying in a confined space.

4. Ease of maintenance:

   • Easy-to-maintain equipment, ensuring long life and consistent performance.

Applications

• Car Repair Shops: Ideal for professional auto body and paint shops.
• Industrial Painting Companies: Suitable for automotive paint, but also for other industrial applications requiring clean environments for spraying and drying.
• Professional garages: Used for the repair and refinishing of vehicles requiring a high-performance paint booth.

Why Choose this Car Paint Booth?

• Versatility and Performance: Spraying and drying unit in one piece of equipment.
• Protection of the Environment and Occupants: Filtration and extraction system for a healthy and safe environment.
• Reliability and Durability: A piece of equipment designed for daily professional use with high energy efficiency.

Order the EE-7505CE Automotive Paint Booth on ZoneAutoPro.com today and ensure professional painting results in a safe and high-performance environment!

For any questions or assistance, our team is available to guide you through your purchase.
