Technical Specifications

• Lifting Capacity:

  • Total: 15 tons (7,500 kg per column)
  • Maximum Lifting Height: 1820 mm
  • Lifting Time (at max load): 120 s
  • Descent Time: 100 s

• Motorization:

  • 24V DC / 2.2 kW electro-hydraulic for fast and reliable lifting.

• Feeding:

  • 380V for optimal power and long-lasting performance.

• Column Dimensions:

  • 2,300 x 1,100 x 1,300 mm, suitable for a wide range of vehicles and industrial applications.

• Forks:

  • Adjustable, with locking pins allowing adaptation to various wheel widths without the need for special adapters.

• Control Box:

  • LCD display on the main column to display lifting height and possible safety alerts.

• Moving Columns:

  • The integrated pallet truck allows the columns to be moved easily and with great mobility.

• Remote Control Box:

  • 5 meter cable, offering great flexibility to control lifting safely.

Benefits

1. High Lifting Capacity:

   • These columns can lift up to 15 tons, allowing work on heavy vehicles such as trucks and trailers.

2. Automatic Synchronization:

   • The columns are synchronized with each other, ensuring a perfectly balanced and safe ascent and descent.

3. Powerful electro-hydraulic motor:

   • Thanks to their 24V DC motorization and 2.2 kW power, the columns offer fast and efficient lifting, even under maximum load.

4. Adaptability:

   • Adjustable forks easily fit the wheels of different vehicles, removing the need for wheel adapters.

5. Ease of Travel:

   • Thanks to the pallet truck type system, the columns are easy to move, making them ideal for use in workshops with limited space or for outdoor use.

6. Simple and Secure Control:

   • The LCD display on the main column makes it easy to track the lifting height, and the remote control box ensures simple and secure control.

Applications

• Truck Mechanics Workshops : Perfect for workshops specializing in the maintenance and repair of trucks, buses and trailers.
• Maintenance of Industrial Vehicles : Ideal for repairs and services on heavy machinery or construction vehicles.
• Outdoor Use : Designed for outdoor use in a variety of working conditions.

Standards and Safety

• Compliant with E.C. standards, guaranteeing safe use.
• Built-in protection system to prevent overloading and ensure optimal performance every time.

Conclusion

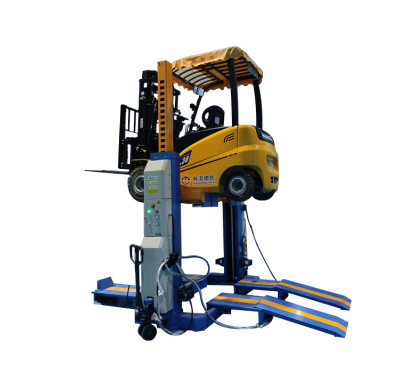

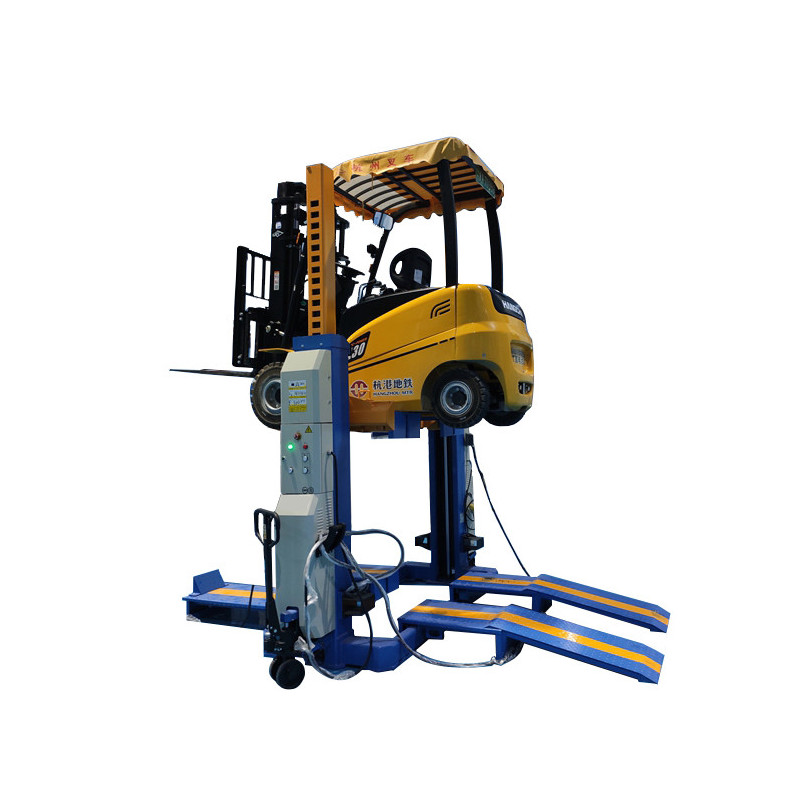

The ML75W Wireless Column Lifts x2 are robust and reliable professional lifting equipment, offering exceptional performance for truck and trailer maintenance workshops. With a lifting capacity of 15 tons, an LCD control system, and easy movement by a pallet truck, these columns are designed for intensive outdoor use while ensuring safety and efficiency.

Order the ML75W Column Lifts today and safely improve the productivity of your lifting operations.
