The 10T Hydraulic Pull-Out Box - SA3423 is a complete professional solution for removing stubborn mechanical parts, such as bearings, hubs or pulleys. Designed for repair shops and garages, this kit offers versatility and power to handle the most demanding operations.

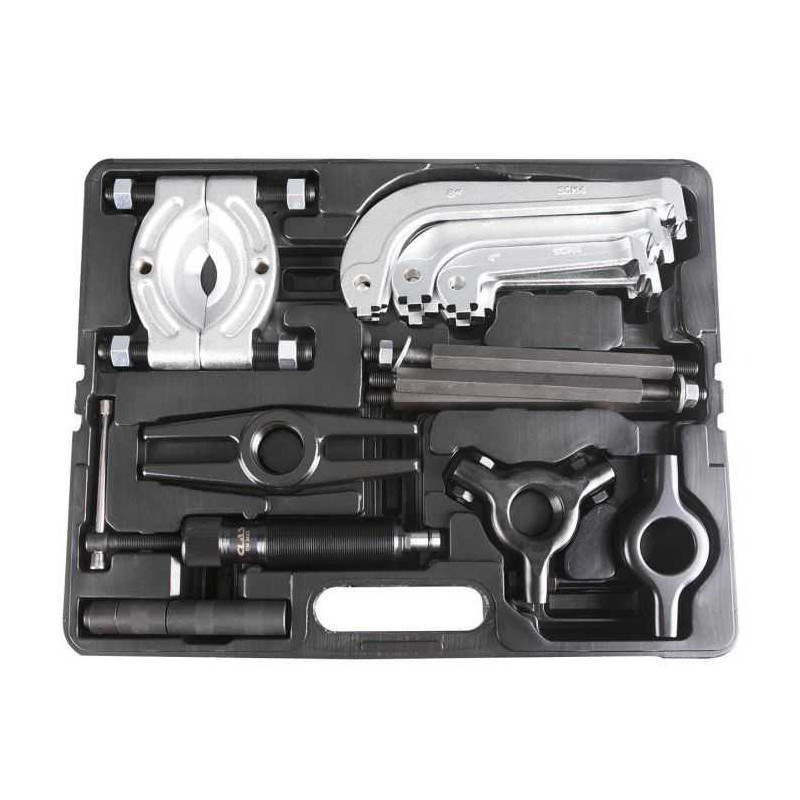

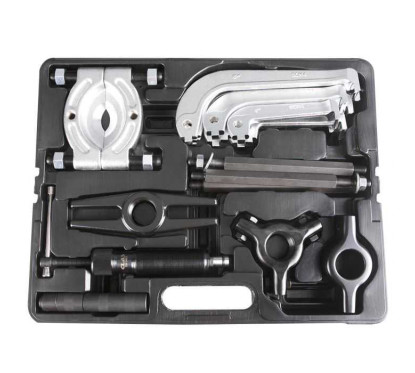

Package Contents:

1. 10T Hydraulic Cylinder : Provides powerful and uniform force for extraction.
2. Arm Supports :
   • 2-prong support.
   • 3-prong support.
3. Extraction claws :
   • 3 claws of 230 mm.
   • 3 claws of 170 mm.
   • 3 x 120 mm claws.
4. Knife arm :
   • 2 x 180 mm arms.
   • 2 arms of 235 mm.
5. Arm Support : 160mm maximum width for added versatility.
6. Separator knife : Adjustable capacity from 20 mm to 105 mm for complex extractions.
7. Additional accessories :
   • 1 Ø25 mm centering device for precise alignment.
   • 1 x 50 mm extension, Ø16 mm head.
   • 1 x 100 mm extension, Ø16 mm head.

Technical Specifications:

• Extraction force : Up to 10 tons, suitable for strongly attached or corroded parts.
• Versatility : Claws of different lengths and adjustable separator knife to accommodate various sizes and shapes of parts.
• Robust Materials : High-strength steel components to ensure durability and performance.
• Compact Design : Comes in a convenient case for organized storage and easy transport.
