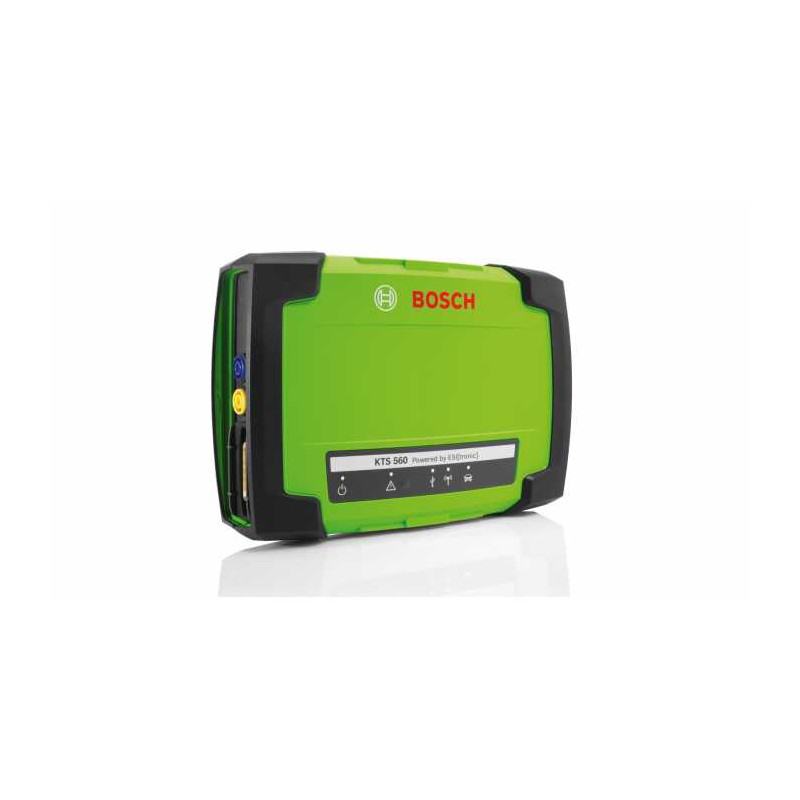

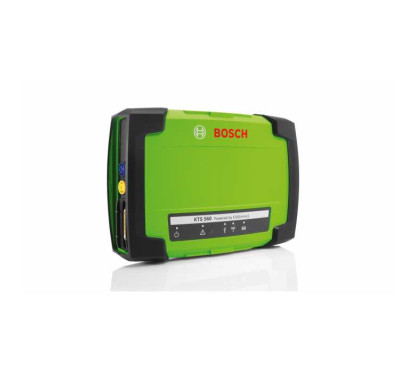

What's in the KTS 560 Case

• OBD patch cable (1.5 m)
• Power Unit
• Probe set and test leads
• Black branch terminal
• Red Test End
• USB connection cable (3 m)
• Bluetooth® USB Adapter
• Mounting kit and set of parts for trolley
• User Manual
• Storage case

Features & Benefits

1. Built-in single-channel multimeter:

   • Quickly resolve voltage, current, and resistance issues.
   • Bandwidth: 100 kHz.

2. Compliant PassThru interface (Euro 5/Euro 6):

   • Easy reprogramming of control units and parallel diagnostics.
   • Simultaneous communication with up to 3 CAN and K-Line interfaces.

3. Ethernet support (DoIP - Diagnostics over IP):

   • Compatible with current and future automotive technologies.

4. Compatibility with Bosch Easy Connect:

   • Connect brand-specific adapters to expand your diagnostic capabilities.

5. Bluetooth® connectivity:

   • Range up to 100 m for increased flexibility in the workshop.

6. Optimized Design for ESI[tronic] 2.0 Online:

   • Smart support for quick troubleshooting and maintenance. (ESI[tronic] license sold separately).

Technical Data

• Multimeter: Built-in single-channel.
• Supply voltage: 8 V DC – 28 V DC.
• Power consumption: < 10 W (via vehicle battery or external power supply).
• Supported Automotive Protocols:
  • ISO 15031, ISO 22900, SAE J2534-1/2 (PassThru), ISO 9141-2, SAE J1850 VPW/PWM, CAN ISO 11898, ISO 15765-4, Low and High Speed ADC, DoIP, and others.
• PC Connections: USB 2.0, Bluetooth® Class 1.
• Dust and water protection: IP53.
• Dimensions: 125 x 44 x 180 mm (W x H x D).
• Weight: Approx. 0.5 kg.
• Operating temperature: 5 °C – 40 °C.

Benefits for Workshops

• Fast and accurate diagnostics: Improve productivity with concurrent diagnostics.
• Universal Compatibility: Works on any Windows PC with ESI[tronic] 2.0 software installed.
• Portability: Compact and lightweight, with a sturdy storage case.
• Durability: Water and dust resistant for workshop use.

Applications

• Professional garages.
• Automotive Diagnostic Centers.
• Workshops specialising in repair and maintenance.
