Valise diagnostic Bosch KTS465 - kit KTS560+DCU120
€3,705
Taxes included
Overview

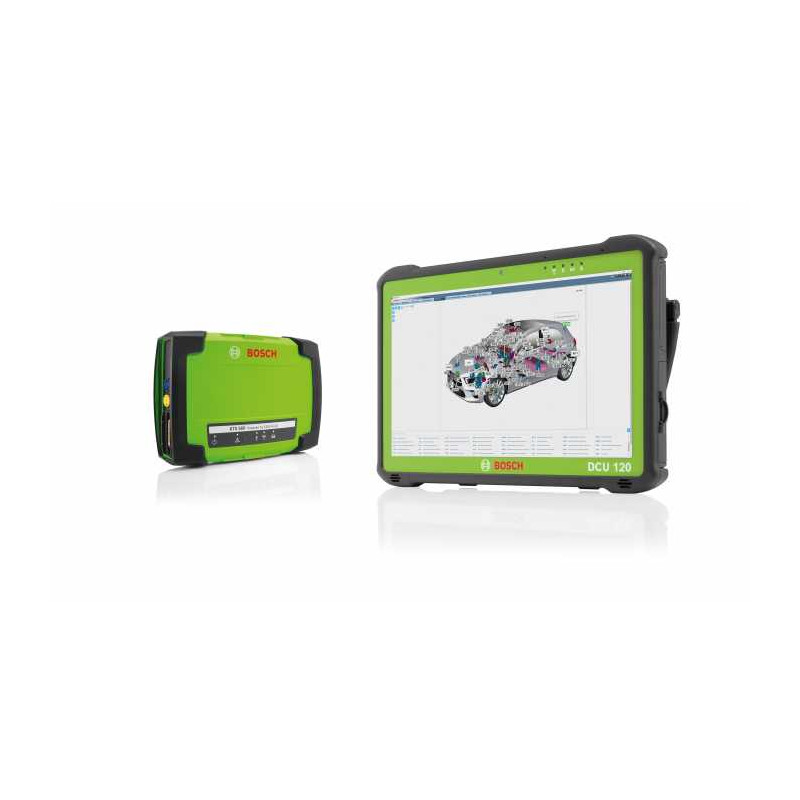

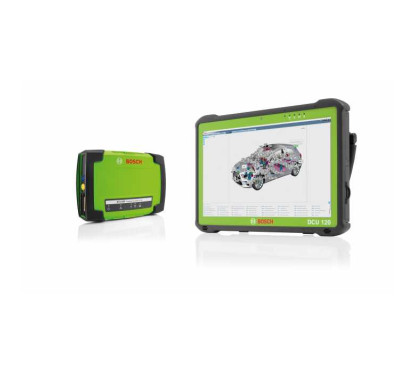

The KTS 465 package is a combination of the robust KTS 560 module and the DCU 120 11.6" portable tablet PC.
The DCU 120 mobile offers a quick and easy way to access and control the ESI [tronic] 2.0 online software. With stable, secure, high-performance integrated Bluetooth, it enables uninterrupted diagnostics and testing using the feature-rich KTS 560 module, including the fully compliant PassThru interface for simple reprogramming of the vehicle manufacturer's software.
Work more efficiently and without restrictions: the handy tablet can be passed from one technician to another, or connected to an external display to share diagnostics on a larger screen.
The DCU 120 mobile offers a quick and easy way to access and control the ESI [tronic] 2.0 online software. With stable, secure, high-performance integrated Bluetooth, it enables uninterrupted diagnostics and testing using the feature-rich KTS 560 module, including the fully compliant PassThru interface for simple reprogramming of the vehicle manufacturer's software.
Work more efficiently and without restrictions: the handy tablet can be passed from one technician to another, or connected to an external display to share diagnostics on a larger screen.
KTS460 case contents:
DCU 120
- 11.6'' Tablet PC display
- Battery
- External DVD-ROM drive
- Power supply with mains cable
- Stylus
- Adapter cable for vehicle power supply
- Recovery DVD
- User manual
- Storage case
KTS 560
- OBD connection cable (1.5 m)
- Power supply unit
- Set of probes/test leads
- Shunt terminal, black
- Test lead, red
- USB connection cable (3 m)
- Mounting kit
- Cart mounting kit
- Bluetooth® USB adapter
- Instruction manual
- Storage case
Features and benefits of the KTS560 :
- Integrated 1-channel multimeter: fast, convenient measurement of voltage, current and resistance.
- Ethernet interface (DoIP - Diagnostics over Internet Protocol): be ready today for tomorrow's requirements. Supports current and future Ethernet-based vehicle interfaces.
- Simultaneous diagnostics: The module communicates with three CAN and K-Line interfaces simultaneously for fast, highly productive diagnostics.
- Compatible with Bosch Easy Connect and other vehicle-specific Bosch adapters: Easily expand your diagnostic capabilities with a wide range of vehicle manufacturer-specific non-OBD cables.
- Powerful, stabilized Bluetooth connectivity with a range of up to 100 m: operate with maximum efficiency thanks to increased workshop coverage.
- Optimally designed for use with ESI[tronic] Evolution software (purchased separately): Enjoy a host of benefits far beyond simple diagnostics, with intelligent troubleshooting and support for rapid repairs and maintenance.
DCU120 features and benefits:
- 11.6-inch display with capacitive touchscreen for convenient operation
- Full HD display for high quality and legibility
- Powerful microprocessor for safe, trouble-free execution of software for test and diagnostic systems such as Driver Assistance Systems, Connected Repair, Vehicle System Analysis and Emissions Analysis
- PassThru functions for retrieving vehicle manufacturer's diagnostic data
- Five-hour battery life and robust IP65-compliant design
- Windows 10 operating system and ESI[tronic] Evolution online diagnostics software pre-installed
- GigaLAN connection as well as Wifi, Bluetooth and USB interfaces according to the latest technical standards
Technical data :
Processor
Intel® Celeron® N3160 at 1.6 GHz (boosted to 2.2 GHz)
RAM
4 GB DDR3
Mass storage
256 GB SSD
Display
10" TFT touchscreen, 1024 x 600 dpi
Battery
Lithium-ion. 5200 at 7.2V (= 37.5 Wh)
Wi-Fi
Bluetooth 2.1, power class 1 and Wi-Fi IEEE 802.11 b/g/n
Interface
2 x USB 3.0, LAN 10/100 Mbit, VGA, audio
Operating system
Windows 10 IoT, 64 Bit
Weight
approx. 2kg
Dimensions
361 x 222 x 49 mm
(W x H x D)
(W x H x D)
External DVD drive
Available
VGA
VGA connection for external monitor
Car-supplied power supply
DCU 100 controller can be supplied from the vehicle, using the included adapter cable
KTS 560
Single-channel multimeter
Supply voltage
8 V DC to 28 V DC
Power consumption via vehicle battery or power supply
< 10 W
PC connections
USB 2.0, Bluetooth®
Class 1
Class 1
Weight
approx. 0.5 kg
Dust and water protection
IP53
Multimeter bandwidth
100 kHz
Automotive protocols
ISO 15031, ISO 22900, SAE J2534-1 and -2 (PassThru), ISO 9141-2 (K and L), SAE J1850 VPW and PWM, high-speed CAN ISO 11898, ISO 15765-4 (OBD), single-wire CAN, low-speed CAN, ISO 13400 (Diagnostics over IP) and other vehicle-specific protocols
Dimensions
125 x 44 x 180 mm
(W x H x D)
(W x H x D)
Operating temperature range
5 °C to 40 °C
This equipment is designed for intensive Pro use
Equipment designed for intensive daily use. Extremely high level of efficiency and performance. Defined according to our most demanding criteria and manufactured by our production partners to meet the most extreme expectations.
This equipment brings together all the most sophisticated functional and performance qualities on the market for independent workshops, technical inspections, dealerships and other technical services. Recommended for professionals looking for maximum performance, reliability and durability.
NOTE: Zoneautopro offers the best products for every level of use. Be sure to identify your intended use first. Choosing the right equipment for the job is essential for maximum efficiency and satisfaction.
As with all our equipment, it's important to follow the installation, use and maintenance instructions for optimum performance and longevity.
