Product Composition

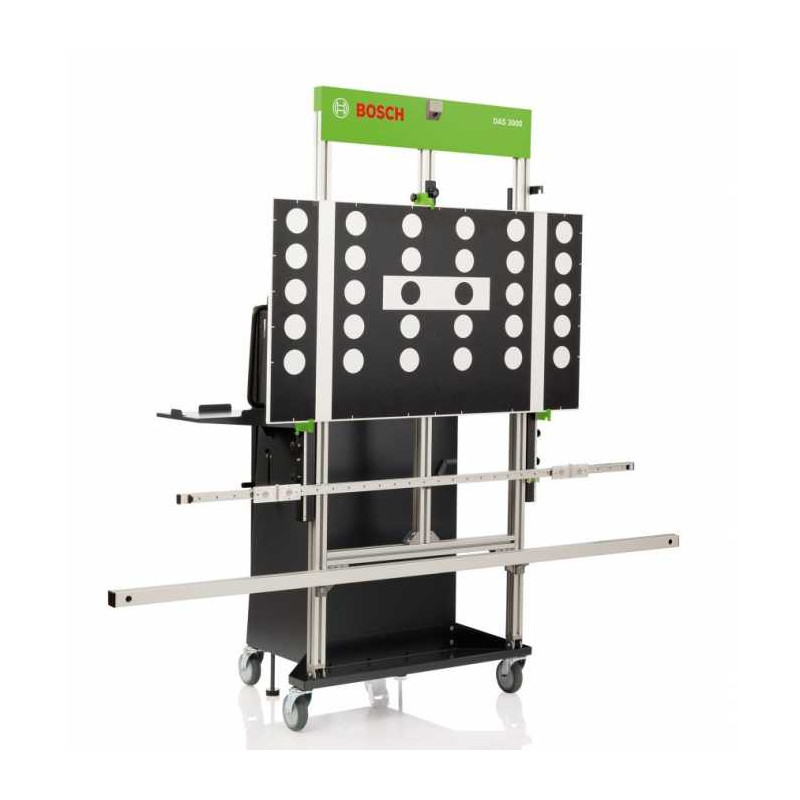

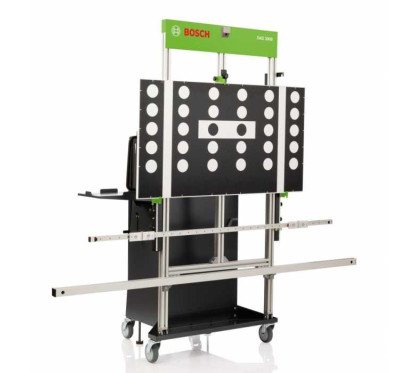

• DAS 3000 S20 calibration device.
• Calibration target for cameras and radars.
• 3D reference target with feet for distance measurement.
• 3D camera set for the rear axle push axis.
• CTA 100-1 quick claw set for rear wheels with 3D targets.
• CTA 104-1 distance measuring plate.
• Storage chest for targets.
• DAS 3000 software downloadable via ESI[tronic] 2.0.

Key Benefits

1. Accuracy and Efficiency:

   • Compliance with manufacturer procedures for perfect calibration.
   • Calibration following the thrust axis of the rear axle.

2. Wide Compatibility:

   • Compatible with all OEM targets (optional).
   • VW dual target function for cameras and radars.

3. Advanced Technology:

   • 3D camera system for fast and dynamic positioning.
   • Tilt adjustable at 3 points (-2°, 0°, +2°).

4. Comfort of use:

   • Heavy-duty trolley with large wheels for easy manoeuvring.
   • Side shelf for PC or Bosch DCU tablet.

5. Speed of execution:

   • Easy installation and calibration with the included adapters and tools.
   • PDF print report for each calibration.

Applications

• ADAS specialized workshops and garages.
• Calibration of radars and front cameras for light and commercial vehicles.
• Advanced diagnostics and compliance with safety standards.

Technical Specifications

1. Front Radar Calibration:

   • Adjustable height: 260 – 1,000 mm.
   • Lateral positioning: ±,750 mm.

2. Front camera calibration:

   • Offset to the ground: 0 – 300 mm.
   • Height of the target holders: 700 mm – 1,850 mm.
   • Lateral positioning: ±,800 mm.

3. Range of action with 3D cameras:

   • Track width: 1,650 mm – 2,200 mm.
   • Distance: 0.4 – 6 m.

4. Dimensions and Weight:

   • H x W x D: 2,090 mm x 2,030 mm x 730 mm.
   • Weight: Approximately 120 kg.

5. Minimum Software Specifications:

   • Operating Systems: Windows 7, Windows 10.
   • Resolution: 1024 x 600 pixels minimum.
   • Memory: 4 GB DDR RAM.
   • Disk space: 0.5 GB.
   • Connection: WiFi required.

Benefits of ADAS Systems

ADAS systems are becoming essential in modern vehicles to improve safety and driver assistance. The Bosch DAS 3000+ ensures the proper functioning of these systems after repairs or interventions requiring their recalibration.
