Technical Specifications:

• Main lifting capacity: 30 tons.
• Auxiliary lifting capacity: 6 tons (optional).
• Lifting height:
  • Minimum: 240 mm.
  • Maximum: 1,540 mm.
• Platform dimensions:
  • Length: 8,000 mm.
  • Width: 810 mm.
• Width between columns: 3,500 mm.
• Distance between platforms: 1,000 mm.
• Total width: 9,580 mm.
• Rise time: 90 seconds.
• Engine power: 5.5 kW.
• Standards: Complies with E.C. requirements

Highlights of the Lift:

1. Advanced Synchronization Technology:

   • The motors are mechanically connected by transmission shafts and bevel gearboxes in an oil bath.
   • Ensures perfect platform leveling and balanced load distribution, regardless of vehicle position.

2. Simplified maintenance:

   • Only one initial adjustment is required, with no adjustment during use.
   • No cables or carrier chains that can stretch or flex.

3. Maximum Security:

   • Main assembly with safety catches.
   • Up and down limit switches to prevent overtaking.
   • Safety micro-switch activated in case of an obstacle during the descent.
   • Automatic shut-off thanks to a safety switch if the lift encounters a solid object.

4. Automatic Lubrication:

   • Each column is equipped with a piston pump for optimal lubrication of the main nuts and spindles with each lift.
   • Guaranteed long life and smooth operation.

5. Motor Protection:

   • Thermal relay to prevent overheating or damage in the event of an overload or disconnected phase.

6. High-End European Design:

   • Top quality components made in Europe, guaranteeing reliability and durability.

Applications:

• Designed for professional workshops specializing in the maintenance of buses, trucks, and other heavy goods vehicles.
• Perfect for technical inspections, general repairs and fleet maintenance.

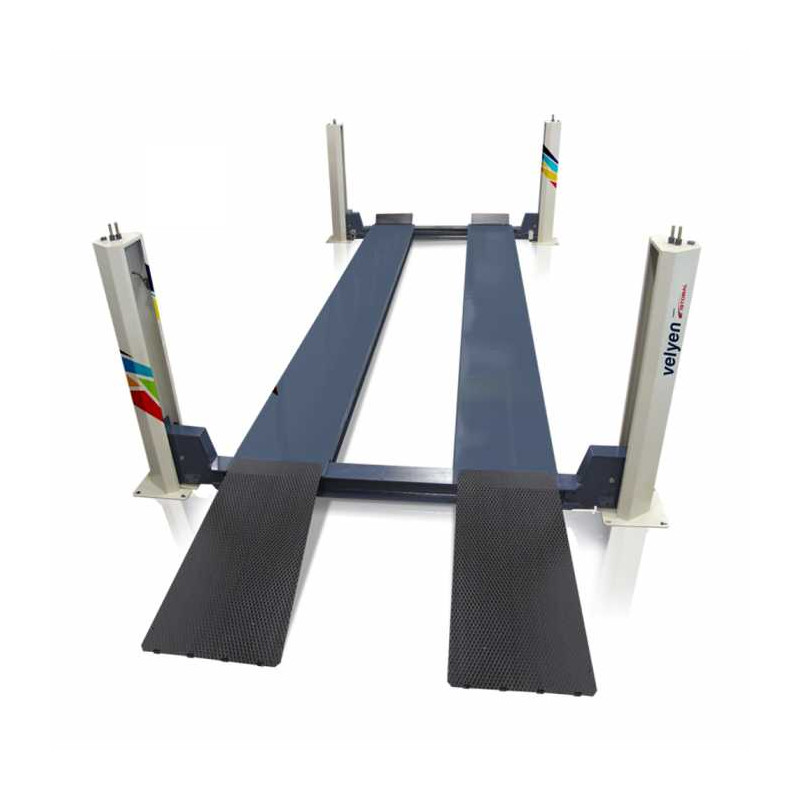

Why Choose This 30T 4-Post Lift?

• Unmatched Power: Suitable for the heaviest vehicles thanks to its 30-tonne capacity.
• Long platforms: Ideal for large trucks and buses.
• Total Security: Multiple mechanical and electronic protection devices.
• Easy Maintenance: One-time initial adjustment and automatic lubrication.
• European Quality: Materials and design that meet the highest standards.

Order today on ZoneAutoPro.com to equip your workshop with a high-performance and safe 30T PL 4-column lift . For any questions or requests for assistance, our team is at your disposal to assist you in your choice!
