Technical specifications

• Lifting capacity: 25t
• Auxiliary Lifting Capacity: 6t (Optional)
• Minimum lifting height: 240 mm
• Maximum lifting height: 1,540 mm
• Distance between platforms: 1,000 mm
• Width between two columns: 3,500 mm
• Total width: 9,580 mm
• Platform length: 8,000 mm
• Platform width: 810 mm
• Engine power: 5.5 kW
• Lifting Time (Climb): 90s
• EC Standards

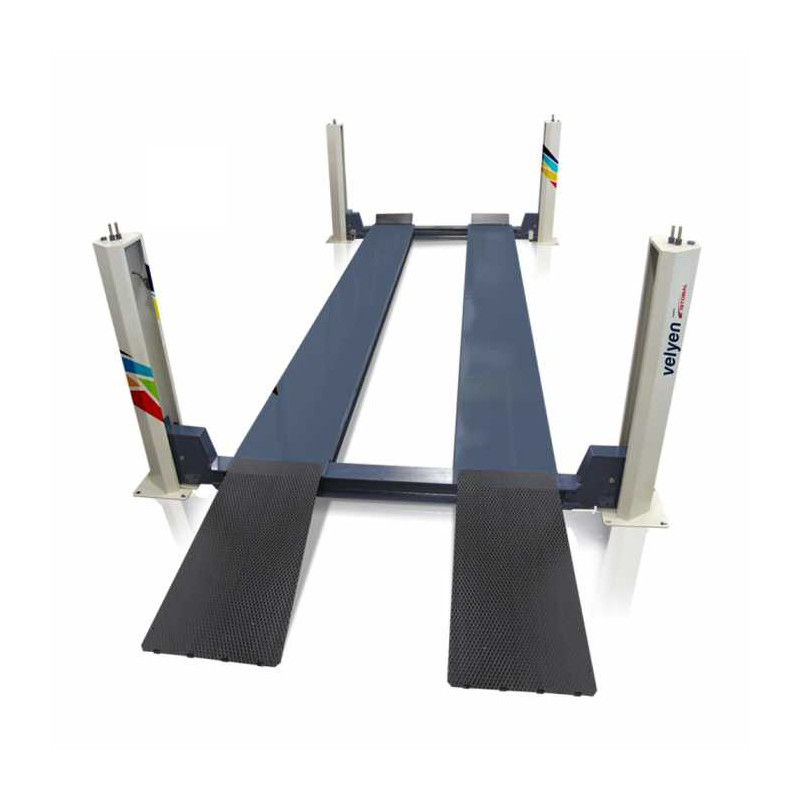

Our 25T 4-Post Lifts have the following features:

Each of the motors is mechanically connected to each other by driveshafts and bevel gearboxes in an oil bath to ensure perfect platform levelling and a balanced load on each of the motors regardless of the vehicle's position.

Only one adjustment is made during installation and never during operation because there are no parts that can flex or lengthen, e.g. cables and support chains.

CE-approved platform with low-voltage controls.

The motors are protected by a thermal relay to prevent them from burning out in the event of an overload or disconnected phase.

Effectiveness and total safety:

Main assembly and safety catches.
Mechanical safety stop.
High and low limit switches.
Micro safety switch in case of failure
Bevel gears in an oil bath.

Automatic lubrication of the main and safety nuts and spindles is achieved by a piston pump in each column, which ensures optimal lubrication every time the riser is raised, ensuring a long service life and smooth operation.

A safety switch automatically stops the movement if the elevator encounters a solid obstacle during the descent.

The length of the platform and the capacity of these lifts make them ideal for buses and trucks.
