Presentation

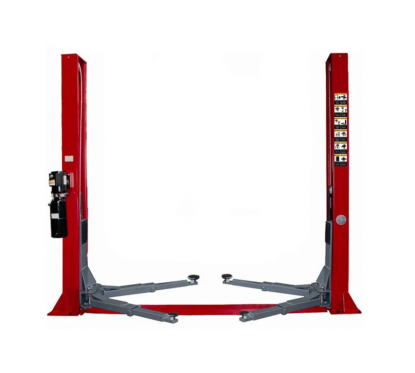

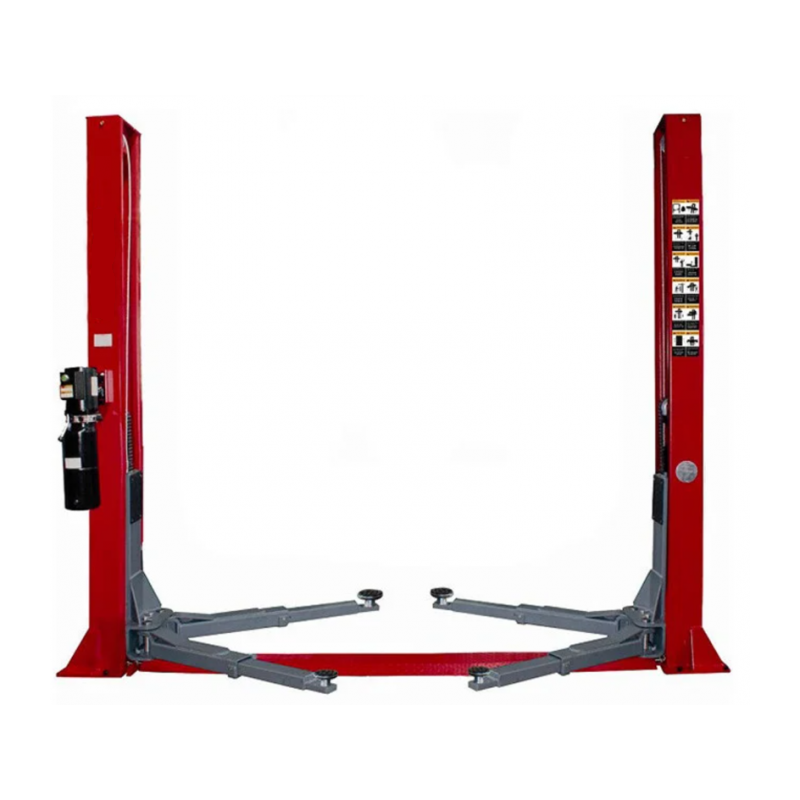

The QJY240 2-column bridge: the ideal choice for private individuals with a passion for mechanics

If you are a mechanical professional, a garage owner, a tire manufacturer or a bodybuilder looking for a reliable and efficient lift, you have come to the right place!

The 2-column bridge is the essential tool for individuals who like to take care of their car and carry out maintenance or repair work themselves. With a lifting capacity of 4.0 tons, it can easily support most vehicles on the market, from small city cars to large sedans and light commercial vehicles. Whether you want to change the tires, change the oil or inspect the chassis, this lift will be your trusted ally.

At consogarage.com, we understand the importance of simplicity and robustness when choosing a lift. That's why we have carefully selected this model equipped with manual unlocking. This system gives you complete peace of mind, as it allows you to easily lock and unlock the columns at any time, ensuring the safety of your operations.

The installation of this 230v 2-column bridge has been greatly simplified. You can quickly set it up in your garage without the need for any special technical skills. Our team at consogarage.com is also at your disposal to answer all your questions and assist you in this process. We're here to ensure you have an exceptional customer experience, from the moment you purchase to the use of your new tool.

230v 4 ton 2-post bridge: make your car maintenance work easier with our high-quality model

By choosing this 2 Post Lift 4.0t - Manual Unlock, you are opting for quality and reliability. Thanks to its advanced technical features, it will meet all your expectations in terms of performance and durability. In addition, with its certification of compliance with the strictest safety standards, you will be able to work with peace of mind.

Don't wait any longer and treat yourself to the car lift for individuals that you have always dreamed of. At consogarage.com, we are committed to providing you with high-quality products that are simple to use and meet your specific needs as a mechanical professional. Order the 2-column bridge reference QJY240 now and enjoy a professional tool at hand.

Manual release of the safety devices A very robust system

The release system reduces electrical elements to an absolute minimum.

An action on the lever located above the hydraulic block simultaneously unlocks the mechanical safety devices in each of the columns. The user can then engage the lever on the block to release the hydraulic valve that will lower the entire system.

This extremely simple system drastically reduces the risk of failure by limiting electrical systems to the essentials.

Asymmetrical and telescopic lifting arms For greater compatibility

The lifting arms installed on the trolleys are asymmetrical, swivelling and telescopic. A configuration that allows the QJY range of axles to support all types of vehicles, including long vehicles such as some pickup trucks and classic vehicles.

Cable synchronization

Easy adjustments and maintenance

The two lifting trolleys are synchronised by a steel cable system that passes from one to the other and ensures synchronous ascent of the two elements.

 During commissioning and during the maintenance phases, it is sufficient to tension the two cables in the same way using  a 30mm hex socket.

Automatic release of the lifting arms

Highly reliable system

The lifting arms unlock automatically when the truck reaches the ground. This mechanical safety system is extremely simple and reliable, no risk of breakdown

You also have the option to manually unlock each arm independently when the carriage is lifted by simply pressing the corresponding plunger under the carriage.

50mm lifting extensions included

Install on thin slabs with optional receptacles

The pair of QJY235D15 bases allows the QJY series lifts to be installed on concrete slabs from 150 mm thick. Without these bases, a slab of at least 200 mm is required.

The bases come with 16 fixing plugs , including the 10 plugs included with your lift, you will have everything you need for a solid mount.

See the bases

And also...

Certification CE

All consogarage cranes are CE certified and meet the requirements of safety and reliability for professionals and others alike.

Anchors included

Floor fixing plugs (18 x 160 mm) are included in the scope of delivery.

Parts

Zoneautopro ensures the distribution of spare parts, no unpleasant surprises in the future.

Technical Support

The important thing is trust! Consogarage's technical assistance is available for you.

Note on hydraulic oil

Consogarage lifts are delivered without oil.

This model uses 12 liters of hydraulic system oil index #46, if you don't already have it, you can buy it on our website to receive it at the same time as your deck.

I'm going

This equipment is designed for Semi-Pro use

Equipment intended for the private user (and not for professional companies) looking for high quality , even if it is not a machine considered professional.

Suitable for intermediate use (not designed for frequent or weekly use or intensive or prolonged use), they will nevertheless be able to provide medium/high level services with a very good degree of effectiveness specific to their definition. Highly appreciated by users who are extremely attentive, during the purchase phase, to the characteristics and superior quality of a product while maintaining an attractive price.

NOTE: Zoneautopro offers the best products for every level of use. Remember to identify the use you are going to make of it as a priority. Choosing the most suitable equipment for use is paramount for maximum efficiency and satisfaction.
Like all our equipment, it is important to follow the installation, use and maintenance instructions for optimal performance and longevity.
